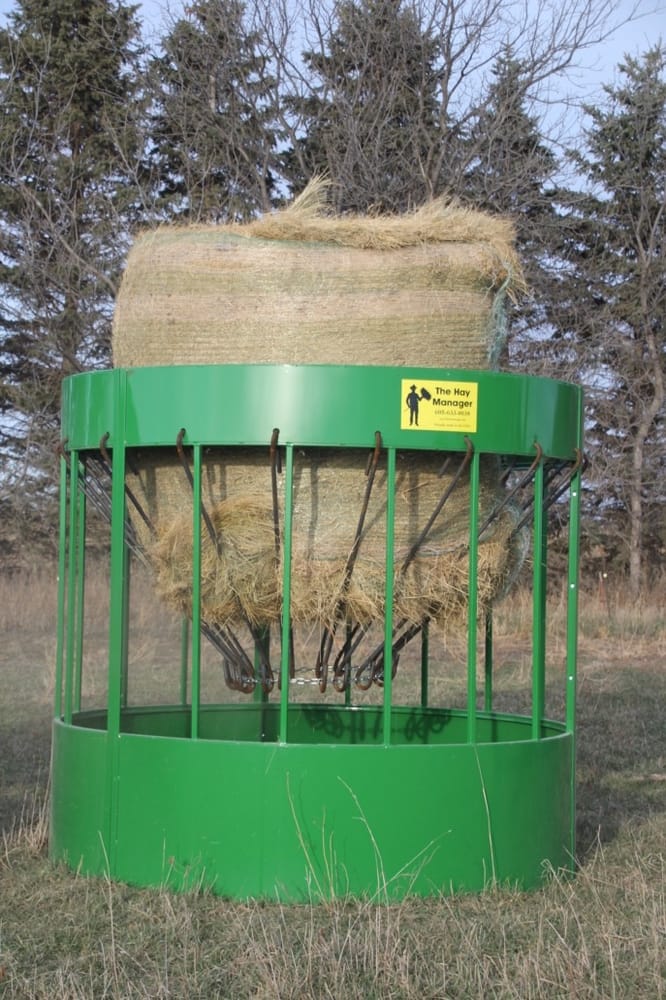

BALE FEEDER HAY MNGR HORSE FEEDER

Long narrow openings to keep mane from being rubbed keeping your horses safe from sharp edges
Allows horses to move the hay around, eating evenly through the toughest bale
Robust manufacturing to withstand the harsh winter environments
Efficiency (85-95%) that should pay for a feeder in the first year
Rod and chain design allows for infinite hay restriction along with robust strength
Heavy 14 gauge sheet metal that doesn’t break from a horse’s kick, or bale spear
Bale is supported off the ground preventing mold and mildew from growing

8’ diameter, 7’ in height
16” openings with 47” of vertical height
Cone rods lengthened at 6’ to allow horse to eat at head level
7’ of chain to adjust bale height and feed restriction
Weight: 645 lbs fabricated with 14-gauge steel
1/4“ Grade 30 proof coil chain, #1250 working load
American made with steel melted and modeled from America
The bottom band is 2 ft tall, the uprights are 4 ft tall and the top band is 1 ft tall, making the unit 7 ft tall overall.
The openings are spaced ~15 inches apart from each other.
